EVERYTHING YOU NEED TO KNOW

Dead Right There. That's the only outcome you're hunting for tonight.

No wind. No distractions. Just the cold, dark night and the faint shape of a hog working the fence line two hundred yards out, its signature ghosting through your thermal. You've been sitting on this field for three hours, and your legs are stiff, but the rifle at your feet hasn't asked anything of you all night.

Get closer, and the ground turns to broken pasture and deadfall. A heavy rig punishes you here, every extra pound another reason to second-guess the stalk. The DRT doesn't. Magnesium construction keeps it light for the walk in, then locks down hard the second you settle into position. Fold it for the fence-line crossing. Drop into a tripod when the shot presents itself.

Behind the glass, the white heat washes in and everything else drops away. No noise. No stiff knees. Just the reticle and the shape moving through your scope. The DRT's NV bridge keeps your clip-on running true to that reticle, so the crosshair and the signature are always tracking on the same spot. There's no guessing here. You settle the shot, and you send it.

Dead Right There. Every time.

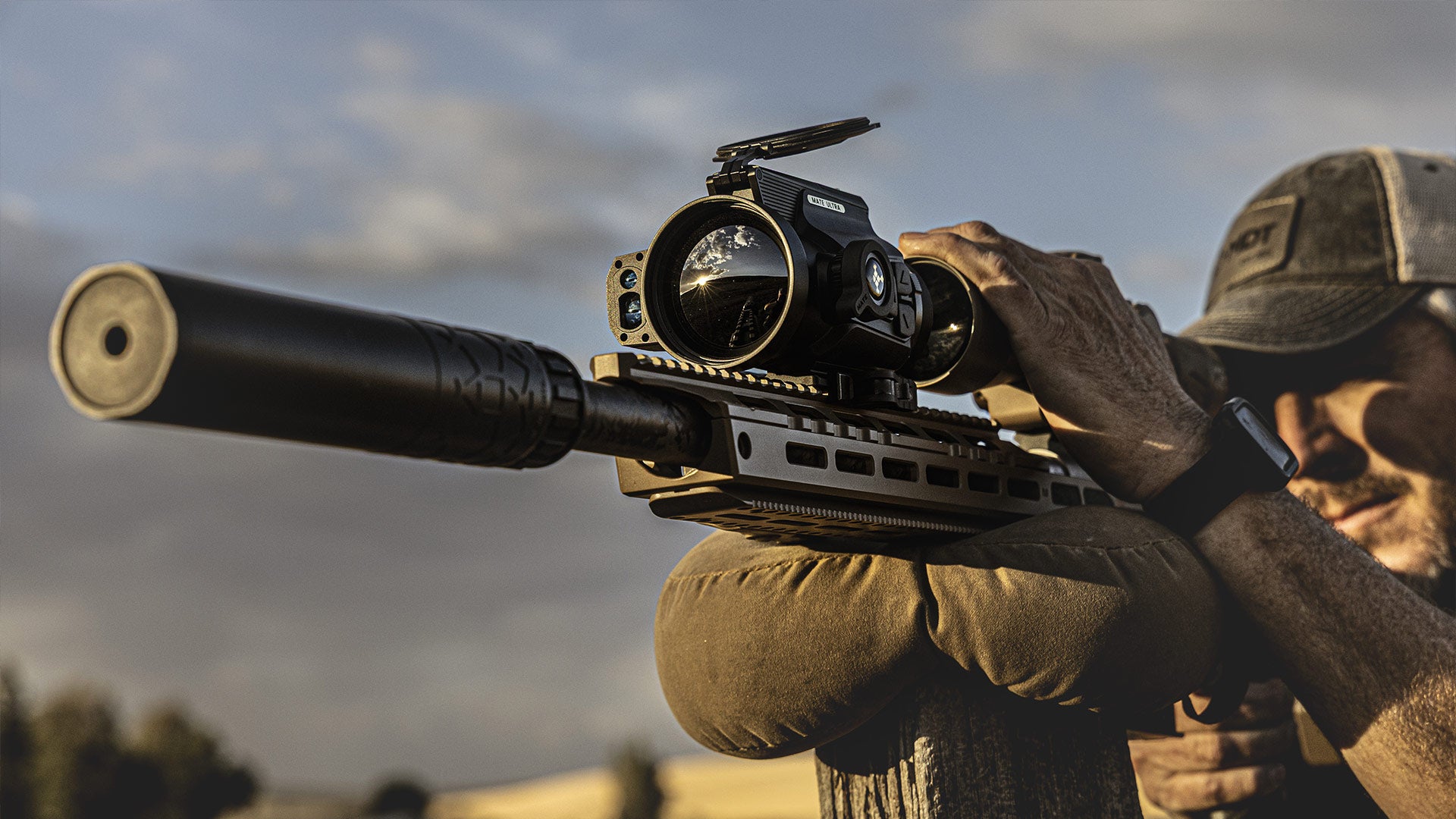

NIGHT HUNTING, DEAD-ON

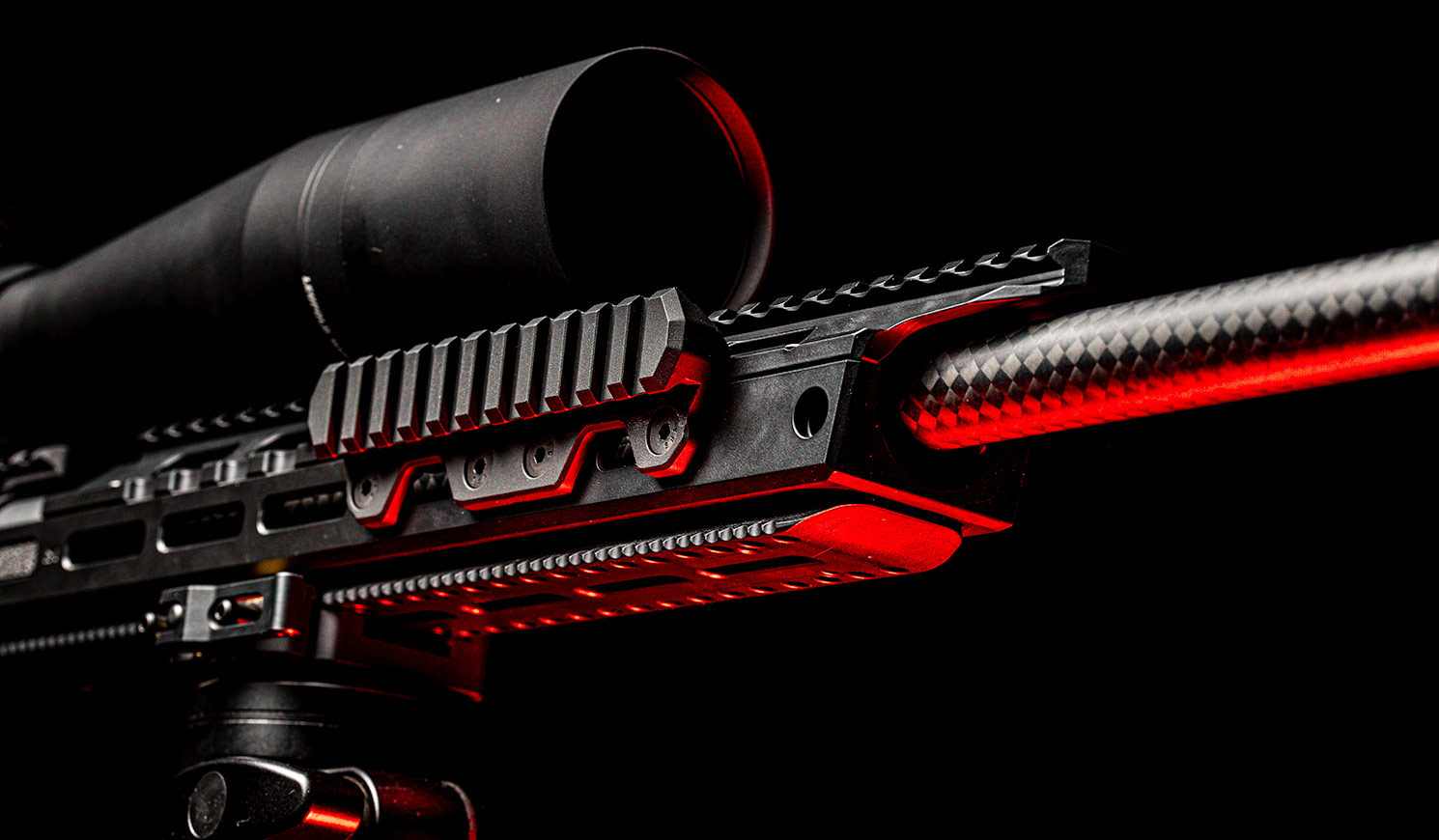

The full-length 20 MOA NV bridge keeps your clip-on locked in true alignment with your riflescope. A rigid forend and bridge system keep that alignment from wandering under pressure, so your sight picture stays clean and your zero stays consistent in the dark.

NIGHT HUNTING, DEAD-ON

The full-length 20 MOA NV bridge keeps your clip-on locked in true alignment with your riflescope. A rigid forend and bridge system keep that alignment from wandering under pressure, so your sight picture stays clean and your zero stays consistent in the dark.

MORE GROUND, MORE OPPORTUNITY

A heavy chassis wears on you long before the shot ever presents itself, and tired muscles mean an elevated heart rate, shakier hold, and a harder time settling the crosshair right when it counts. Magnesium construction holds the whole system to 3.2 lbs without giving up the strength you need behind the glass, so you're steady and settled when the moment finally comes, not gassed from the walk in.

ZERO IN. ZERO SHIFT

Magnesium structure, an aluminum ARCA rail and NV bridge reinforce the forend against the flex that causes point of impact shift. Loaded on a bipod, braced on a tripod, or shooting off a bag, the zero holds.

NEVER LOSE SIGHT OF THE DROP

A low bore axis design cuts the leverage that drives muzzle rise, keeping your sight picture stable through recoil. You stay in the glass, spot the impact, and get back on target fast for a follow-up.

EVERY MOUNT GETS ITS OWN LANE

A bolted-on ARCA rail, M-LOK mounting points, and offset Picatinny rail give your tripod, rangefinder, and IR laser their own dedicated space. Nothing fights for room when it's time to move fast.

MORE GROUND, MORE OPPORTUNITY

A heavy chassis wears on you long before the shot ever presents itself, and tired muscles mean an elevated heart rate, shakier hold, and a harder time settling the crosshair right when it counts. Magnesium construction holds the whole system to 3.2 lbs without giving up the strength you need behind the glass, so you're steady and settled when the moment finally comes, not gassed from the walk in.

ZERO IN. ZERO SHIFT

Magnesium structure, an aluminum ARCA rail and NV bridge reinforce the forend against the flex that causes point of impact shift. Loaded on a bipod, braced on a tripod, or shooting off a bag, the zero holds.

NEVER LOSE SIGHT OF THE DROP

A low bore axis design cuts the leverage that drives muzzle rise, keeping your sight picture stable through recoil. You stay in the glass, spot the impact, and get back on target fast for a follow-up.

EVERY MOUNT GETS ITS OWN LANE

A bolted-on ARCA rail, M-LOK mounting points, and offset Picatinny rail give your tripod, rangefinder, and IR laser their own dedicated space. Nothing fights for room when it's time to move fast.

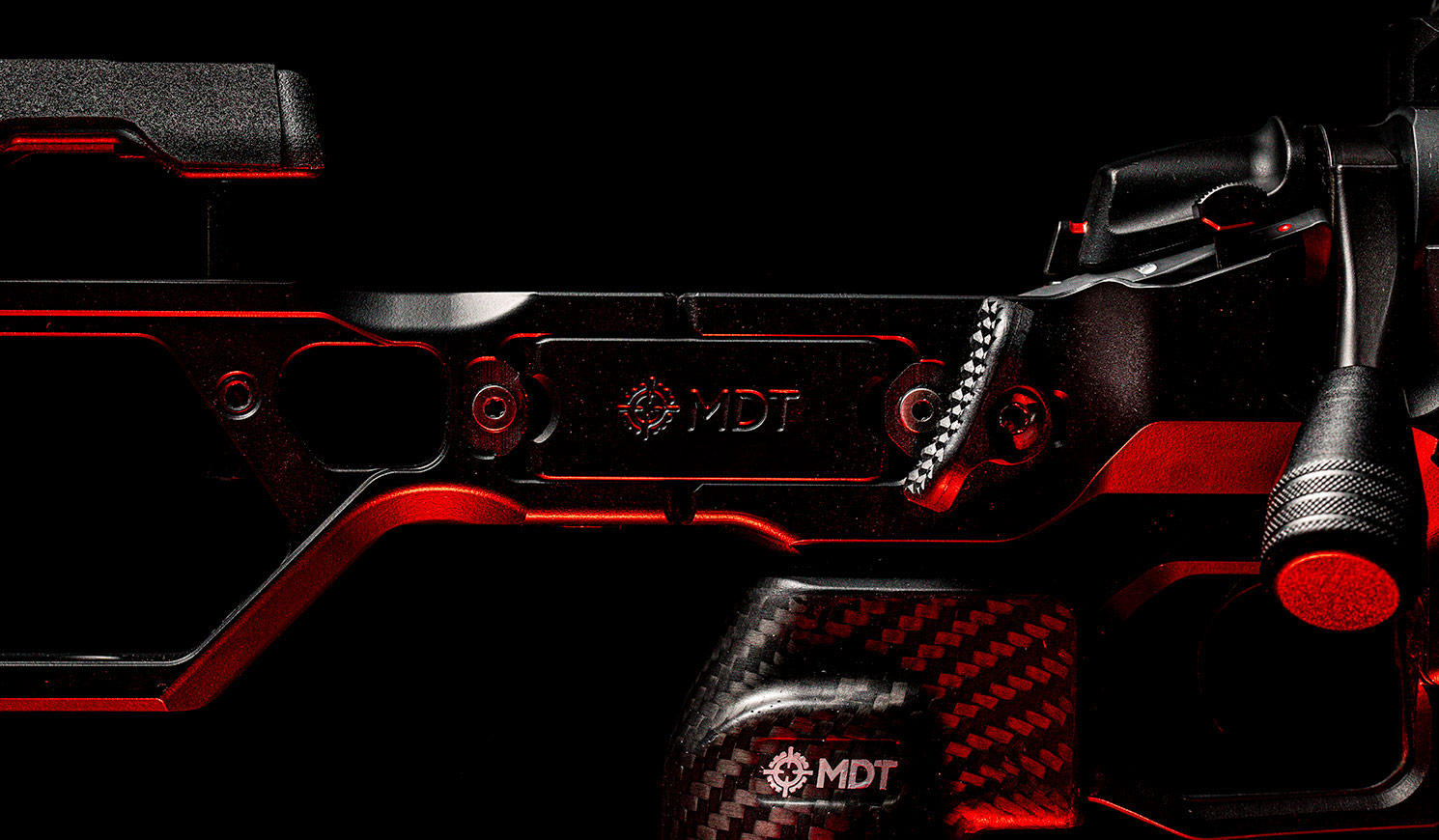

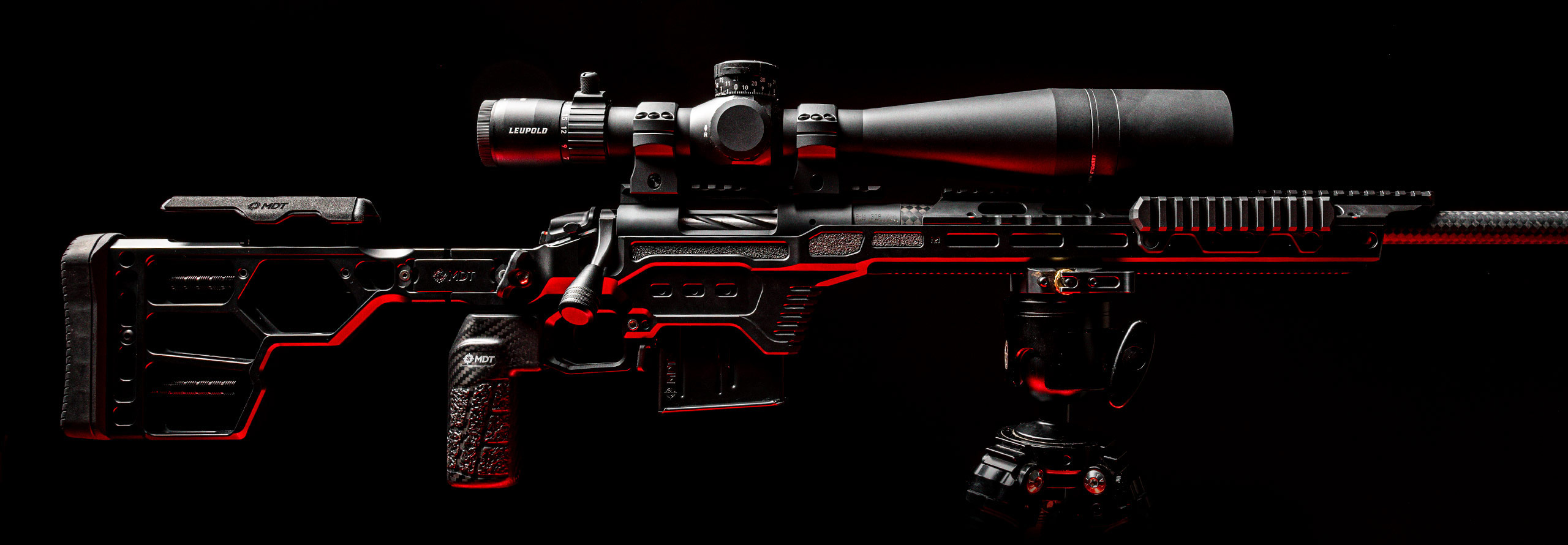

SKELETONIZED MAGNESIUM CHASSIS & BUTTSTOCK

Cuts weight without giving up structural rigidity.

INTEGRATED ADJUSTABLE FRICTION FOLDER

Folds for transport, opens fast, and locks solid for the shot.

SKELETONIZED 20 MOA NV BRIDGE

Keeps clip-on night vision co-witnessed with your optic.

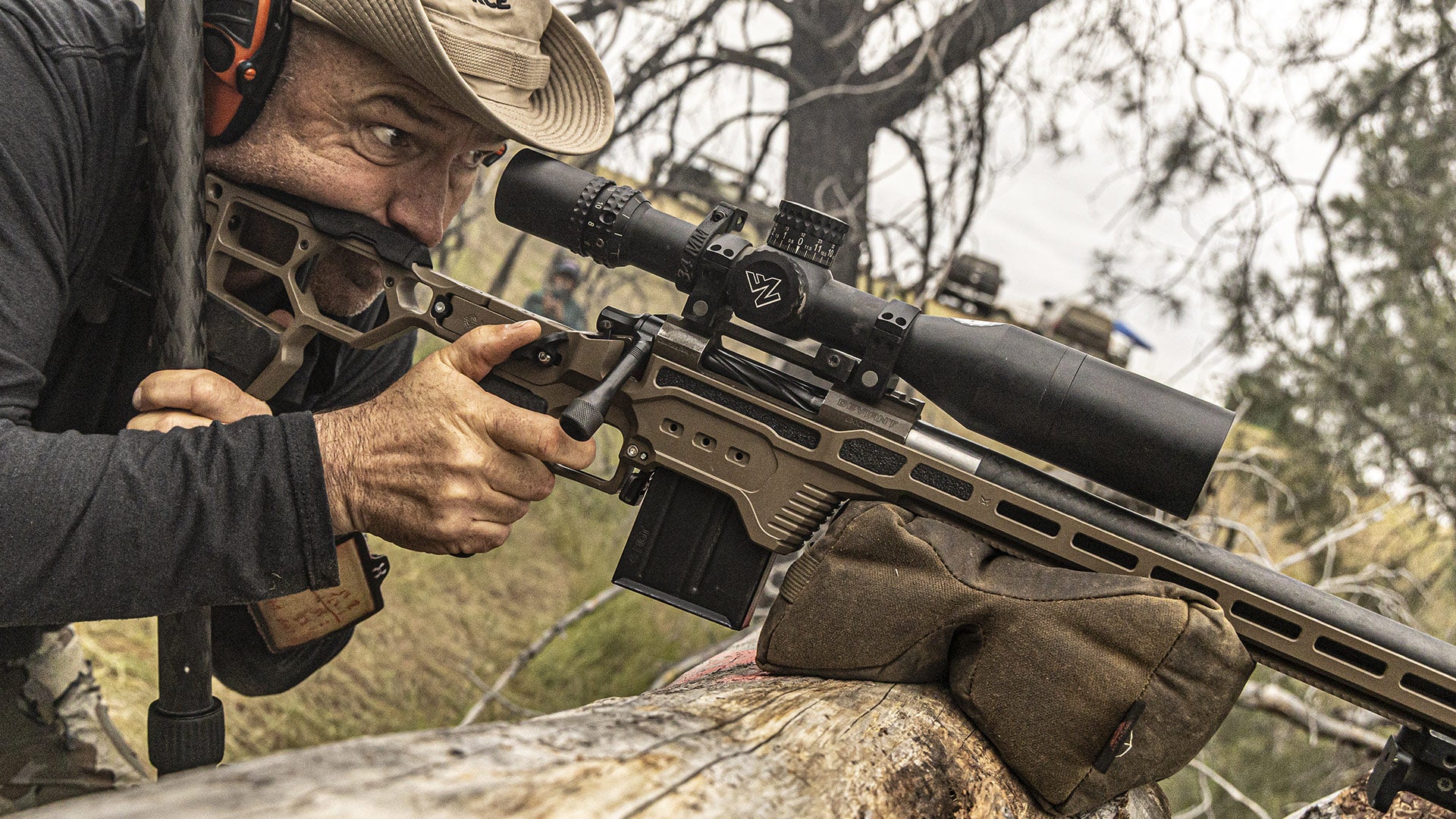

INTEGRATED BARRICADE STOP

Locks into your support bag without putting pressure on the magazine.

STRUCTURALLY DESIGNED RIGID FOREND

Resists flex under bipod, tripod, or bag pressure.

MULTI-MATERIAL CONSTRUCTION (MAGNESIUM, ALUMINUM, TITANIUM, CARBON FIBER)

Each material is placed where its strength-to-weight ratio matters most.

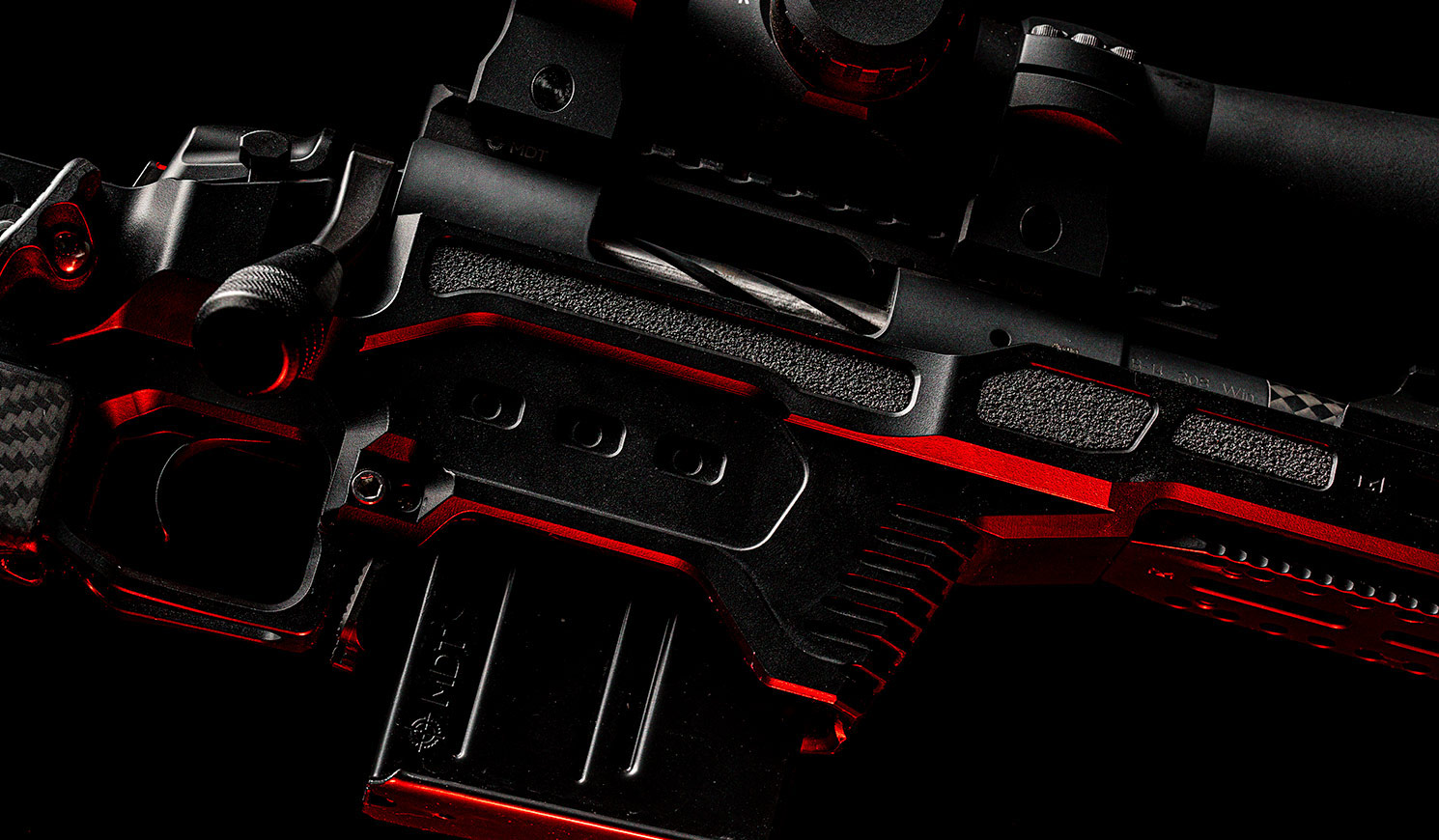

ADJUSTABLE MAG LATCH WITH DELRIN DOWEL PINS

Dials in magazine fit and feed.

FOLD-OVER BOLT DESIGN

Covers the bolt handle when folded for a smaller footprint.

LOCKABLE MAG LATCH

Keeps a loaded magazine secured in the field.

INTEGRAL ADJUSTABLE CHEEKPIECE

Adjusts to match your cheek weld and eye height.

Close-up of textured black surface with intricate patterns.

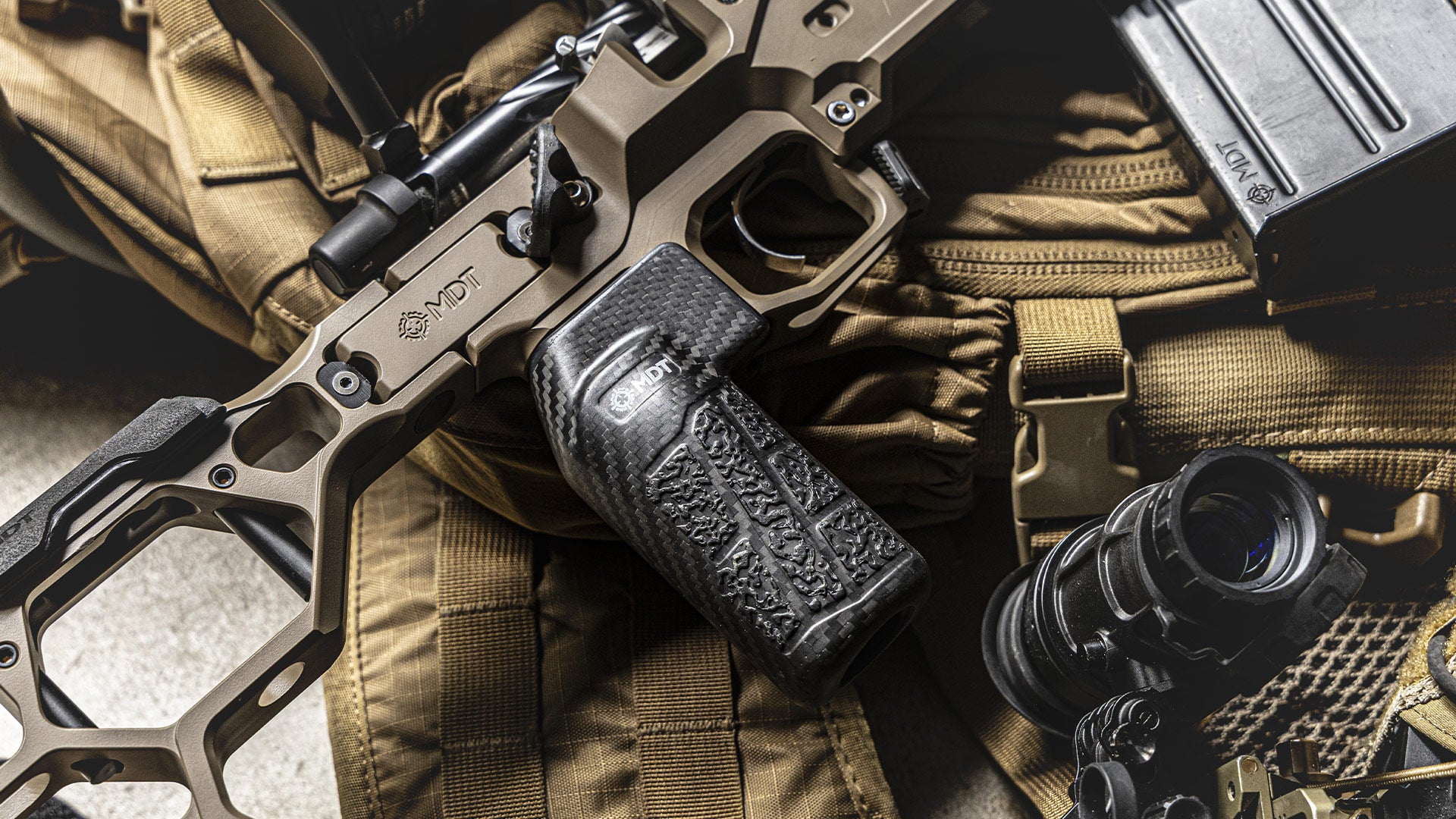

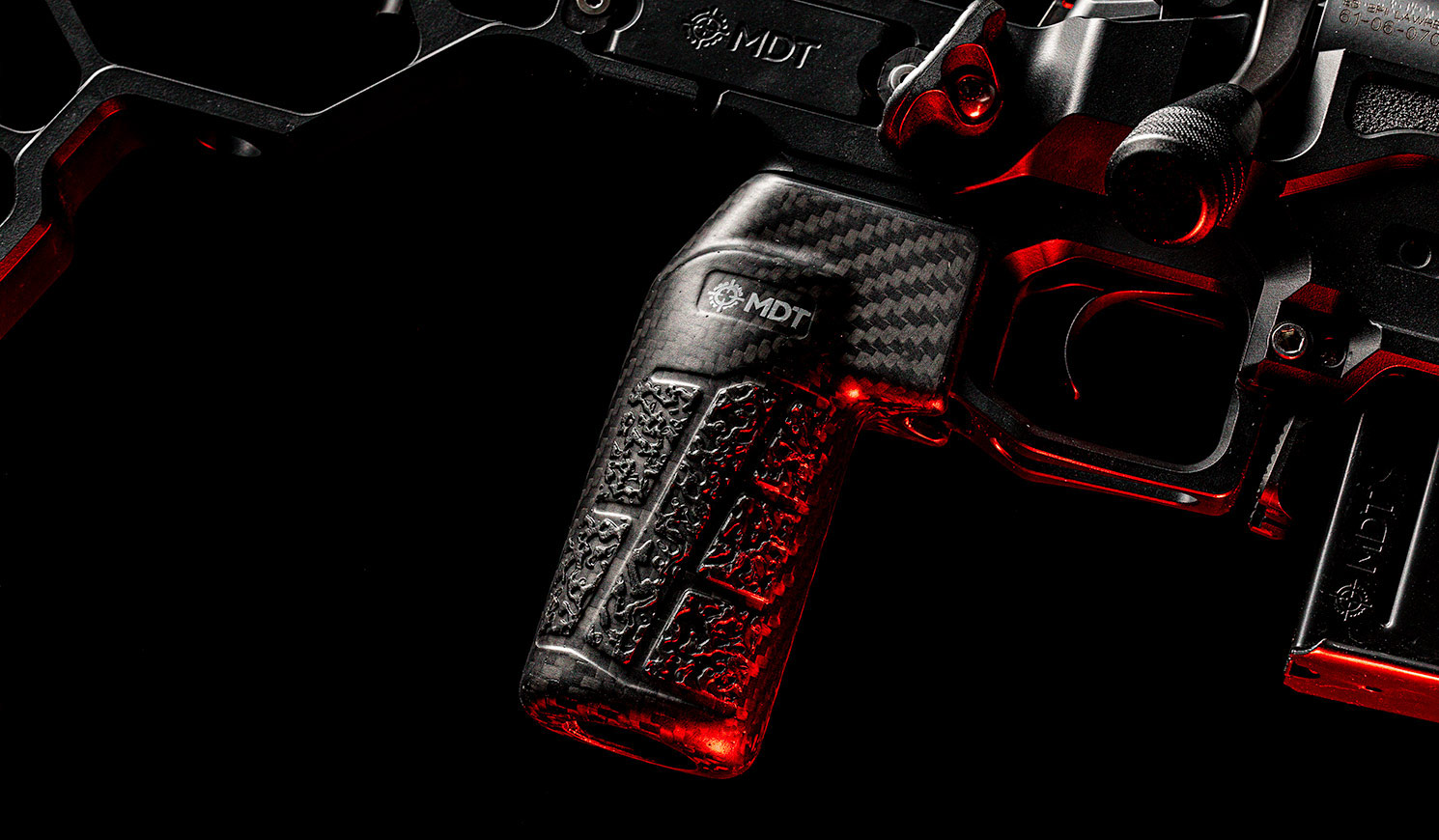

TEXTURED ADJUSTABLE CARBON FIBER VERTICAL GRIP

Adds grip control without adding weight.

MULTIFUNCTION ARCA RAIL WITH ARCALOCK & RRS LOCK

Compatible with both ARCALOCK (Area 419) and RRS Lock tripod/bipod interfaces.

ADJUSTABLE LENGTH OF PULL

Adjusts from 12" to 14.25" to fit the shooter.

OFFSET PICATINNY RAIL ACCESSORY MOUNT

Mounts laser rangefinders and other picatinny accessories clear of the ARCA interface.

M-LOK COMPATIBLE FOREND

Adds M-LOK mounting points along the forend.

ADJUSTABLE M-LOK THUMBSHELF

Positions thumb support to the shooter's grip.

SKELETONIZED MAGNESIUM CHASSIS & BUTTSTOCK

Cuts weight without giving up structural rigidity.

INTEGRATED ADJUSTABLE FRICTION FOLDER

Folds for transport, opens fast, and locks solid for the shot.

SKELETONIZED 20 MOA NV BRIDGE

Keeps clip-on night vision co-witnessed with your optic.

INTEGRATED BARRICADE STOP

Locks into your support bag without putting pressure on the magazine.

STRUCTURALLY DESIGNED RIGID FOREND

Resists flex under bipod, tripod, or bag pressure.

MULTI-MATERIAL CONSTRUCTION (MAGNESIUM, ALUMINUM, TITANIUM, CARBON FIBER)

Each material is placed where its strength-to-weight ratio matters most.

ADJUSTABLE MAG LATCH WITH DELRIN DOWEL PINS

Dials in magazine fit and feed.

FOLD-OVER BOLT DESIGN

Covers the bolt handle when folded for a smaller footprint.

LOCKABLE MAG LATCH

Keeps a loaded magazine secured in the field.

INTEGRAL ADJUSTABLE CHEEKPIECE

Adjusts to match your cheek weld and eye height.

Close-up of textured black surface with intricate patterns.

TEXTURED ADJUSTABLE CARBON FIBER VERTICAL GRIP

Adds grip control without adding weight.

MULTIFUNCTION ARCA RAIL WITH ARCALOCK & RRS LOCK

Compatible with both ARCALOCK (Area 419) and RRS Lock tripod/bipod interfaces.

ADJUSTABLE LENGTH OF PULL

Adjusts from 12" to 14.25" to fit the shooter.

OFFSET PICATINNY RAIL ACCESSORY MOUNT

Mounts laser rangefinders and other picatinny accessories clear of the ARCA interface.

M-LOK COMPATIBLE FOREND

Adds M-LOK mounting points along the forend.

ADJUSTABLE M-LOK THUMBSHELF

Positions thumb support to the shooter's grip.

Compatibility

Compatible MDT Bolt Actions

Fuzion - Lone Peak Bolt Action - Right Handed
MDT
Fuzion - Lone Peak Bolt Action - Right Handed
Regular price $1,949.99 CAD
Fuzion Ti - Lone Peak Bolt Action - Right Handed
MDT
Fuzion Ti - Lone Peak Bolt Action - Right Handed
Regular price $2,349.99 CAD
Razor - Lone Peak Bolt Action - Right Handed
MDT
Razor - Lone Peak Bolt Action - Right Handed
Regular price $1,619.99 CAD

DRT Upgrades

Vertical Adjustment Buttpad
MDT
Vertical Adjustment Buttpad
Regular price $134.99 CAD
Buttstock Spacer Kit
MDT
Buttstock Spacer Kit
Regular price $49.99 CAD
Set Screw/Wheel Knob Replacement Pack
MDT
Set Screw/Wheel Knob Replacement Pack
Regular price $39.99 CAD
Elite Bag Rider
MDT
Elite Bag Rider
Regular price $79.99 CAD
SEND IT GEN2 - Rifle Mounted Electronic Level
MDT
SEND IT GEN2 - Rifle Mounted Electronic Level
Regular price $309.99 CAD

SPECIFICATIONS

MATERIAL / FINISH
  • Magnesium (Chassis Body & Buttstock)
  • Aluminum (NV Bridge & ARCA Rail)
  • Titanium (LOP Pins, LOP Clamp, Action Screws)
  • Carbon Fiber (Grip)

WEIGHT
  • Chassis, Buttstock, NV Bridge, CF Grip: 3.2Lbs / 51.2oz
  • NV Bridge Spacers: 0.08Lbs / 1.3oz
  • NV Bridge: 0.37Lbs / 5.92oz
    Offset Pic Rail: 0.2Lbs / 3.2oz
  • Thumbscrew: 0.02Lbs / 0.32oz

LENGTH OF PULL ADJUSTMENT (LOP)
  • 2.25” LOP Adjustment
    MIN: 12” (305mm)
    MAX: 14.25” (362mm)
  • 1.15” Cheekriser Height Adjustment

DIMENSIONS

33.7” x 1.99” x 7.33”


MAX BARREL DIAMETER

Allows up to 1.25" straight contour Barrels (With included NV Bridge Spacer Kit)


FOREND LENGTH
  • 24.52"
  • From recoil lug: 14.93"

OPTIC ALIGNMENT

NV BRIDGE
  • Muzzle diameter must be less than 1.1"
  • Barrel length must be more than 15" to clear the end of the NV bridge
  • Use a 20 MOA scope base/integrated rail
  • Minimum recommended scope ring height: 1.5"

NV BRIDGE SPACERS
  • For larger barrel diameters up to 1.25" straight MAX.
  • Picatinny rail on the NV bridge will not be in-line with the scope base. Not recommended for NV/Thermal use.
  • Higher scope rings than 1.5" may be required to clear the NV bridge -OR- a scope with a smaller objective lens diameter (1.700"+ height recommended)

SPECIFICATIONS

MATERIAL / FINISH
  • Magnesium (Chassis Body & Buttstock)
  • Aluminum (NV Bridge & ARCA Rail)
  • Titanium (LOP Pins, LOP Clamp, Action Screws)
  • Carbon Fiber (Grip)
WEIGHT
  • Chassis, Buttstock, NV Bridge, CF Grip: 3.2Lbs / 51.2oz
  • NV Bridge Spacers: 0.08Lbs / 1.3oz
  • NV Bridge: 0.37Lbs / 5.92oz
    Offset Pic Rail: 0.2Lbs / 3.2oz
  • Thumbscrew: 0.02Lbs / 0.32oz
LENGTH OF PULL ADJUSTMENT (LOP)
  • 2.25” LOP Adjustment
    MIN: 12” (305mm)
    MAX: 14.25” (362mm)
  • 1.15” Cheekriser Height Adjustment
DIMENSIONS

33.7” x 1.99” x 7.33”


MAX BARREL DIAMETER

Allows up to 1.25" straight contour Barrels (With included NV Bridge Spacer Kit)

FOREND LENGTH
  • 24.52"
  • From recoil lug: 14.93"
OPTIC ALIGNMENT

NV BRIDGE
  • Muzzle diameter must be less than 1.1"
  • Barrel length must be more than 15" to clear the end of the NV bridge
  • Use a 20 MOA scope base/integrated rail
  • Minimum recommended scope ring height: 1.5"
NV BRIDGE SPACERS
  • For larger barrel diameters up to 1.25" straight MAX.
  • Picatinny rail on the NV bridge will not be in-line with the scope base. Not recommended for NV/Thermal use.
  • Higher scope rings than 1.5" may be required to clear the NV bridge -OR- a scope with a smaller objective lens diameter (1.700"+ height recommended)

WHAT YOU GET

DRT Chassis System

  • Magnesium Chassis Base With Integrated Folding Buttstock
  • Carbon Fiber Vertcal Grip GEN2
  • Aluminum ARCA Rail

Aluminum NV Bridge

With optional spacers

  • Aluminum Offset Picatinny Rail
  • Adjustable M-LOK Thumb Rest
  • LOP Adjustment Knob
  • x4 Magwell Dowels
  • Grip Tape

All Required Installation Hardware

VIEW ALL HARDWARE

Forend

  • 6-32 x 0.375in FHCS SS BO TD (T10) - 15in-lbs
    NV Bridge Attachment Screws
  • 10-32 x 0.375in FHCS SS BO TD (T25) - 30in-lbs
    RSS Dovetail Attachment Screws

Adjustable Folder Retention

  • 0.25-28 x 0.375in BHCS AS SBN TD (T25) - 30-35in-lbs (65in-lbs MAX) (or per user’s preference)

Magazine Release Lock

  • 8-32 x 0.25in SHCS SS BO HD (3/32” Hex) - 15 in-lbs
    Crosspin retention
  • 8-32 X 0.188IN CPSES HD 18-8 SS (6.5 turns of engagement)
    Adjust Magazine Release Lock force

Cheekriser

  • 10-32 x 0.5in BHCS SS BO HD (1/8" Hex) - 20in-lbs
    Cheekriser attachment
  • 0.25-20 x 0.1875in Brass Tip Set Screw
    Cheekriser height adjustment

Buttstock

  • 10-32 x 0.75in BHCS SS BO HD (5/32” Hex) - 20in-lbs
    LOP adjustment
  • 10-32 x 0.75in SHCS SS HD BO (1/8” Hex) - 20in-lbs
    LOP Rod attachment (in buttpad)

Grip

  • 0.25-28 x 0.75in BHCS HD TI PLN (5/32” Hex) - 35in-lbs
  • 10-32 x 0.75 BHCS HD TI PLN (5/32” Hex) - 35in-lbs

Action Screw

  • 0.25-28 x 1.5in SHCS HD TI PLN (3/16in Hex) - 65in-lbs
    Rear Action Screw
  • 0.25-28 x 0.625in SHCS HD TI PLN (3/16in Hex) - 65in-lbs
    Front Action Screw

WHAT YOU GET

DRT Chassis System

  • Magnesium Chassis Base With Integrated Folding Buttstock
  • Carbon Fiber Vertcal Grip GEN2
  • Aluminum ARCA Rail

Aluminum NV Bridge

With optional spacers

  • Aluminum Offset Picatinny Rail
  • Adjustable M-LOK Thumb Rest
  • LOP Adjustment Knob
  • x4 Magwell Dowels
  • Grip Tape

All Required Installation Hardware

VIEW ALL HARDWARE

Forend

  • 6-32 x 0.375in FHCS SS BO TD (T10) - 15in-lbs
    NV Bridge Attachment Screws
  • 10-32 x 0.375in FHCS SS BO TD (T25) - 30in-lbs
    RSS Dovetail Attachment Screws

Adjustable Folder Retention

  • 0.25-28 x 0.375in BHCS AS SBN TD (T25) - 30-35in-lbs (65in-lbs MAX) (or per user’s preference)

Magazine Release Lock

  • 8-32 x 0.25in SHCS SS BO HD (3/32” Hex) - 15 in-lbs
    Crosspin retention
  • 8-32 X 0.188IN CPSES HD 18-8 SS (6.5 turns of engagement)
    Adjust Magazine Release Lock force

Cheekriser

  • 10-32 x 0.5in BHCS SS BO HD (1/8" Hex) - 20in-lbs
    Cheekriser attachment
  • 0.25-20 x 0.1875in Brass Tip Set Screw
    Cheekriser height adjustment

Buttstock

  • 10-32 x 0.75in BHCS SS BO HD (5/32” Hex) - 20in-lbs
    LOP adjustment
  • 10-32 x 0.75in SHCS SS HD BO (1/8” Hex) - 20in-lbs
    LOP Rod attachment (in buttpad)

Grip

  • 0.25-28 x 0.75in BHCS HD TI PLN (5/32” Hex) - 35in-lbs
  • 10-32 x 0.75 BHCS HD TI PLN (5/32” Hex) - 35in-lbs

Action Screw

  • 0.25-28 x 1.5in SHCS HD TI PLN (3/16in Hex) - 65in-lbs
    Rear Action Screw
  • 0.25-28 x 0.625in SHCS HD TI PLN (3/16in Hex) - 65in-lbs
    Front Action Screw
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
D
Davenuttall

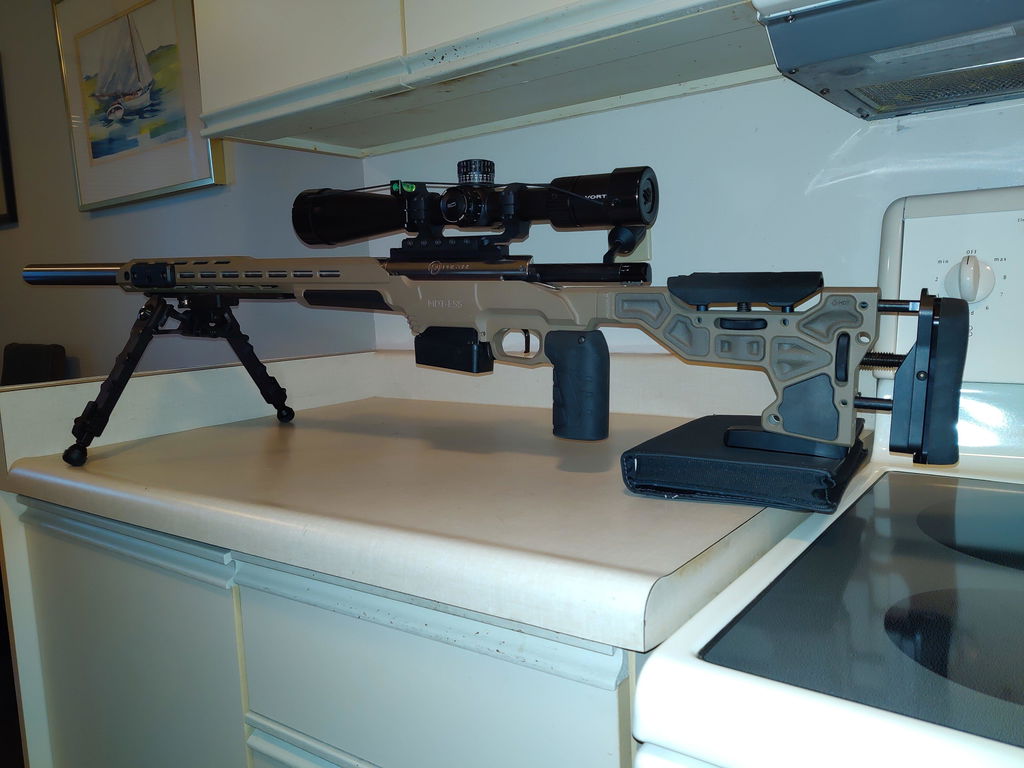

I had to look about 4 times and discovered this new DRT looks identical to my ESS Chassis with a slight variance in the butt.

Don't remember paying $3k for it though and it was just 3 years ago !

Compatibility

Compatible MDT Bolt Actions

Fuzion - Lone Peak Bolt Action - Right Handed
MDT
Fuzion - Lone Peak Bolt Action - Right Handed
Regular price $1,949.99 CAD
Fuzion Ti - Lone Peak Bolt Action - Right Handed
MDT
Fuzion Ti - Lone Peak Bolt Action - Right Handed
Regular price $2,349.99 CAD
Razor - Lone Peak Bolt Action - Right Handed
MDT
Razor - Lone Peak Bolt Action - Right Handed
Regular price $1,619.99 CAD

DRT Upgrades

Vertical Adjustment Buttpad
MDT
Vertical Adjustment Buttpad
Regular price $134.99 CAD
Buttstock Spacer Kit
MDT
Buttstock Spacer Kit
Regular price $49.99 CAD
Set Screw/Wheel Knob Replacement Pack
MDT
Set Screw/Wheel Knob Replacement Pack
Regular price $39.99 CAD
Elite Bag Rider
MDT
Elite Bag Rider
Regular price $79.99 CAD
SEND IT GEN2 - Rifle Mounted Electronic Level
MDT
SEND IT GEN2 - Rifle Mounted Electronic Level
Regular price $309.99 CAD
