Picatinny Rails for the MDT Accessory Scope Ring Caps.

Ideal for mounting bubble levels, data card holders, laser range finders and more.

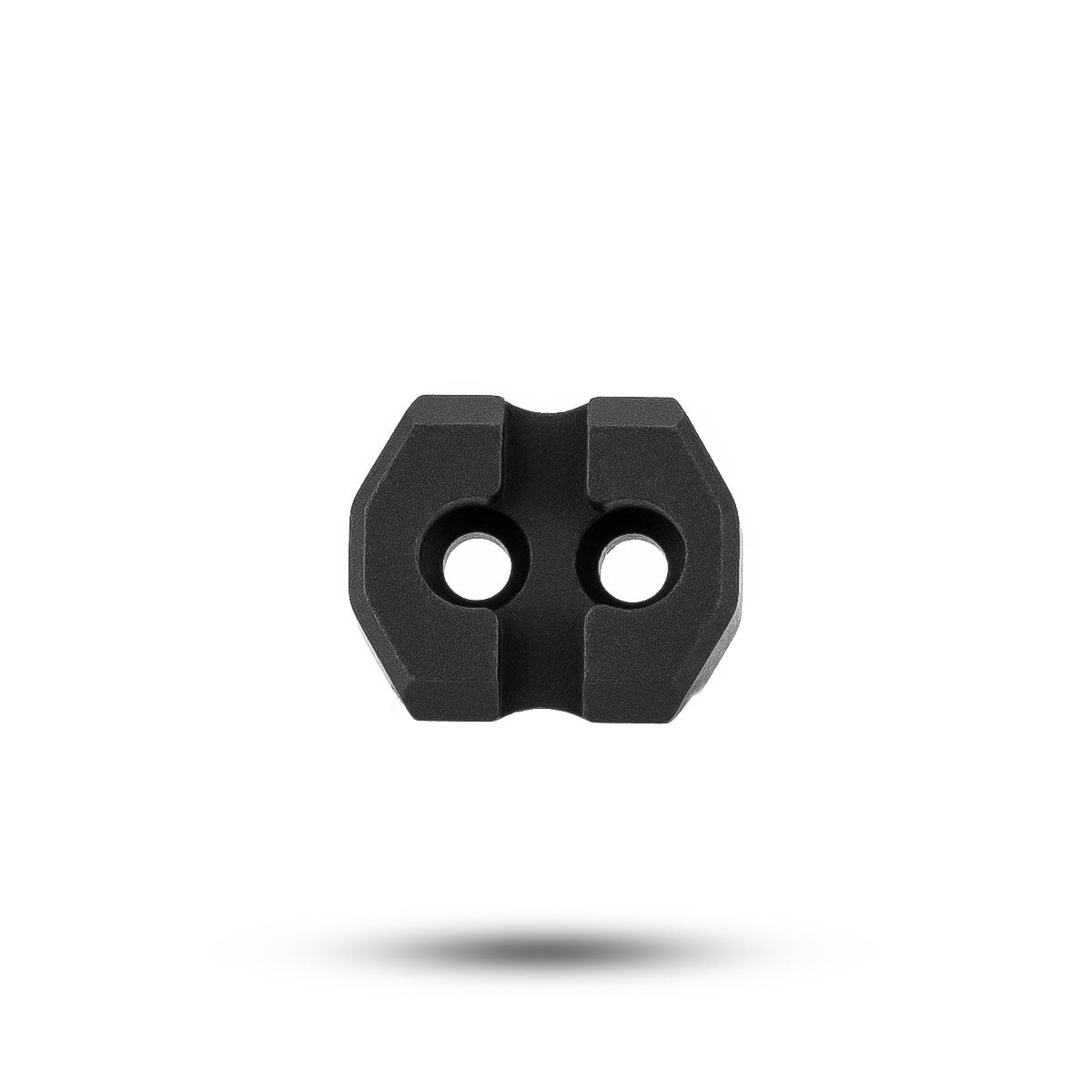

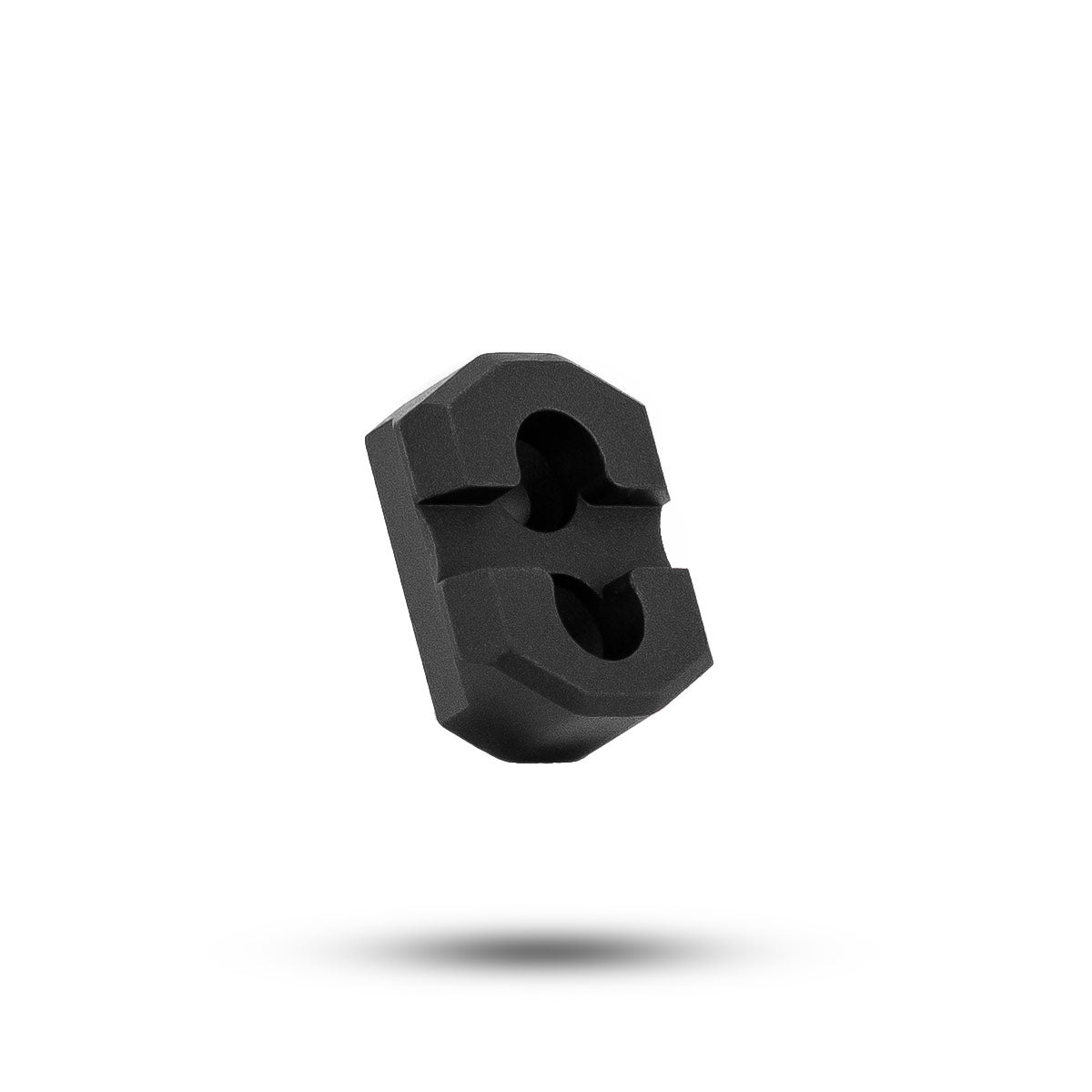

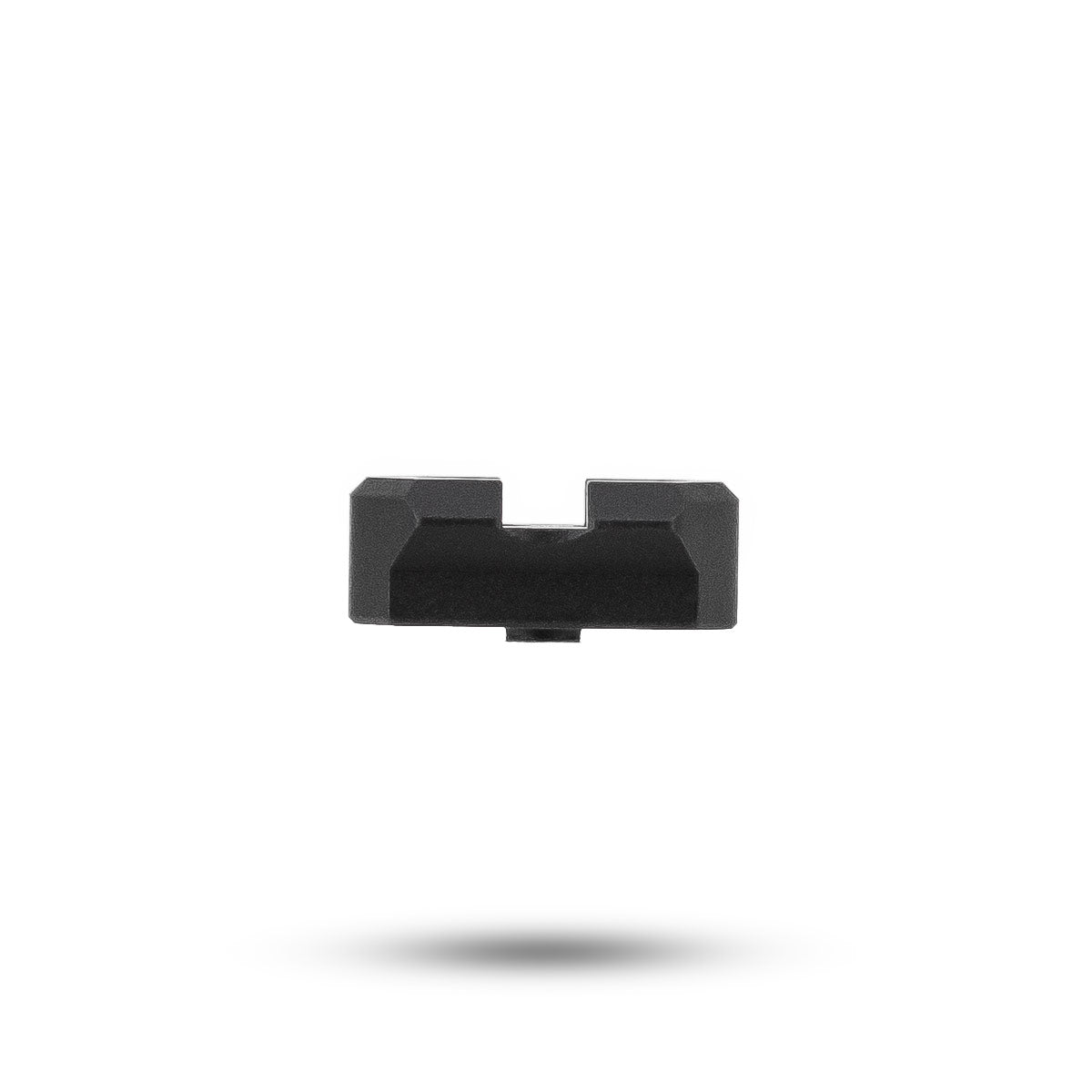

1" Picatinny Rail

• 1" overall length
• Adheres to STANAG 4694 rail profile (NATO rail configuration)
• 1 cross slot
• 2x #6-48 x 1/4" mounting screws
• Integral recoil lug and offset mounting holes to prevent attached accessories from shifting under recoil
• Ideal for mounting bubble levels, data card holders and red dot sights (RDS) with picatinny interface

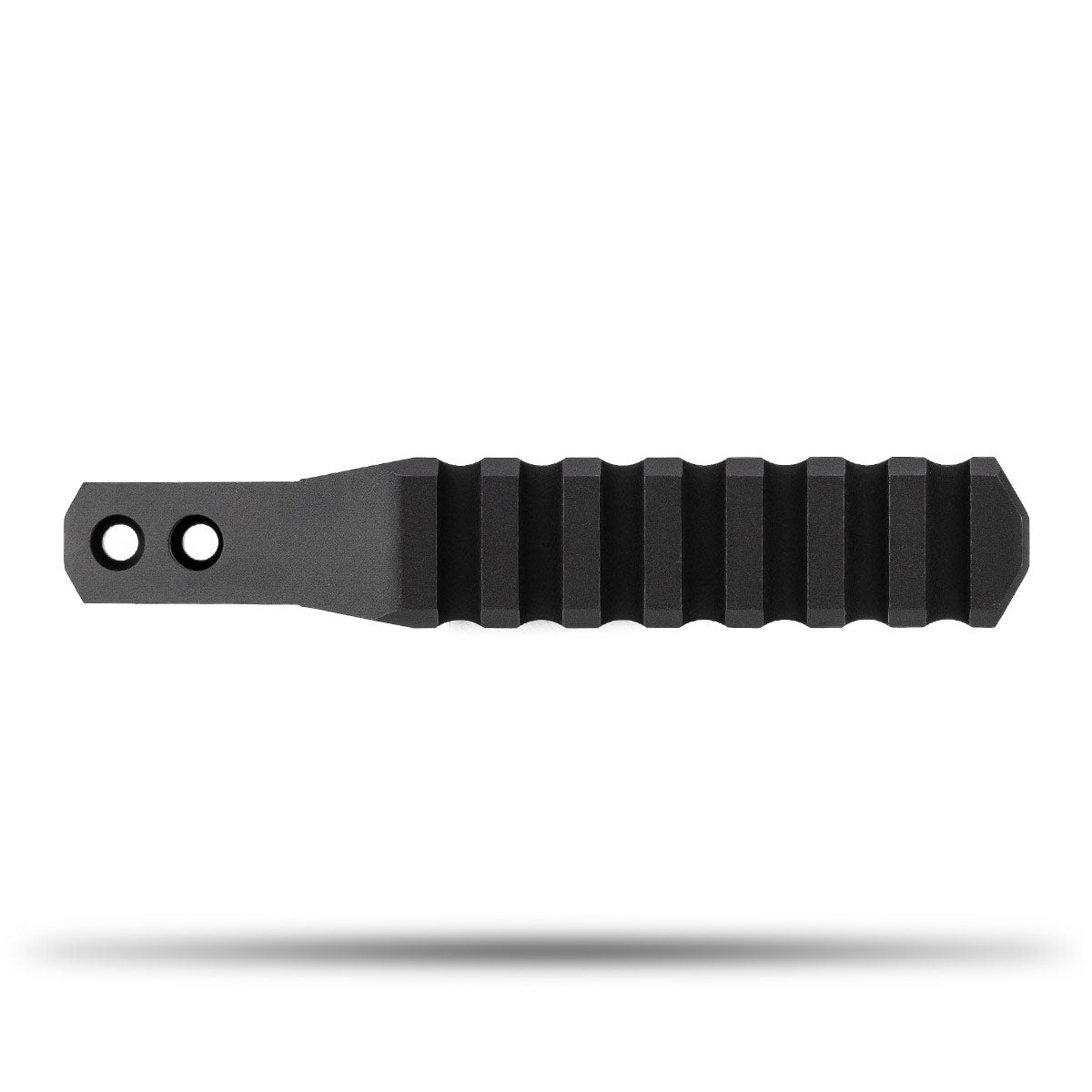

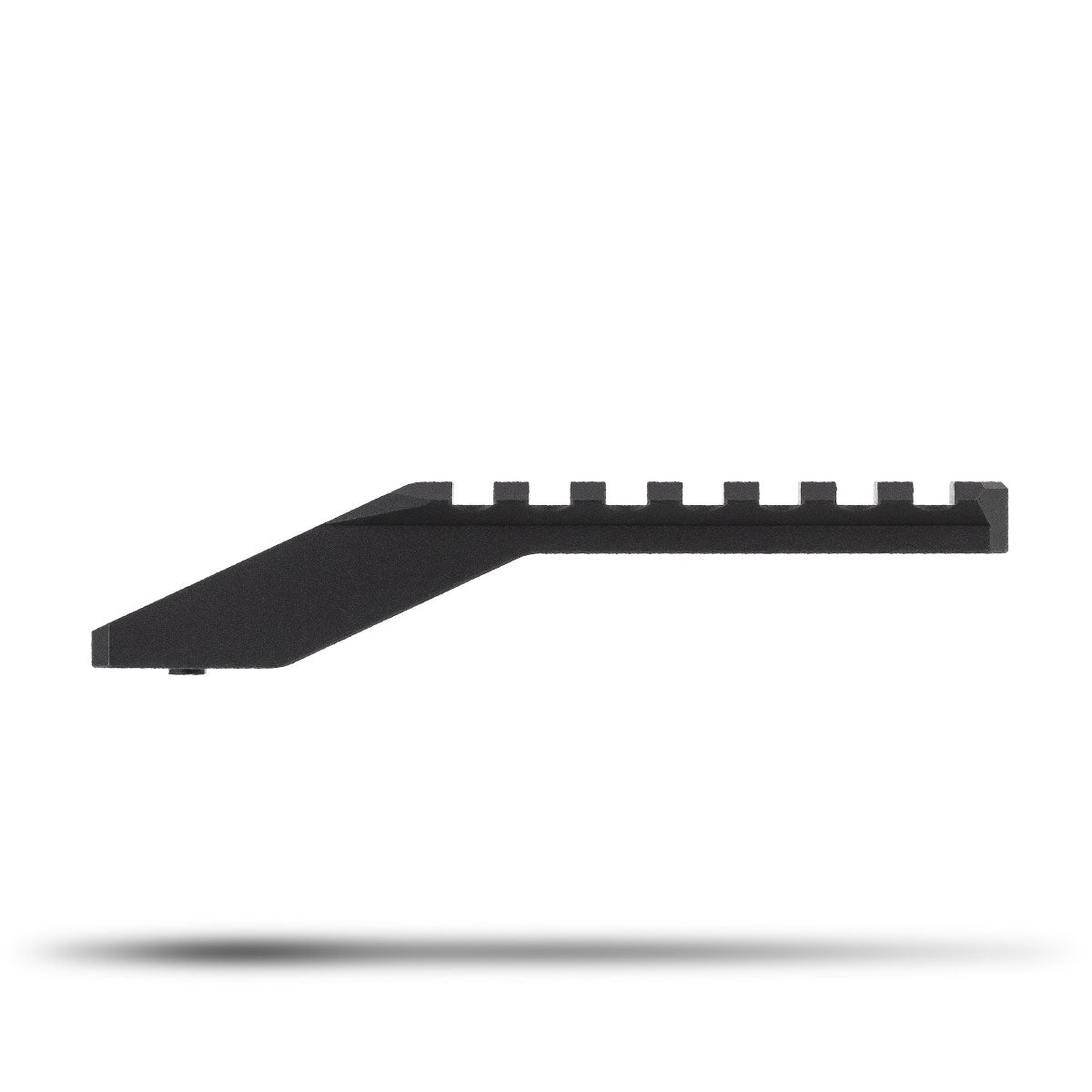

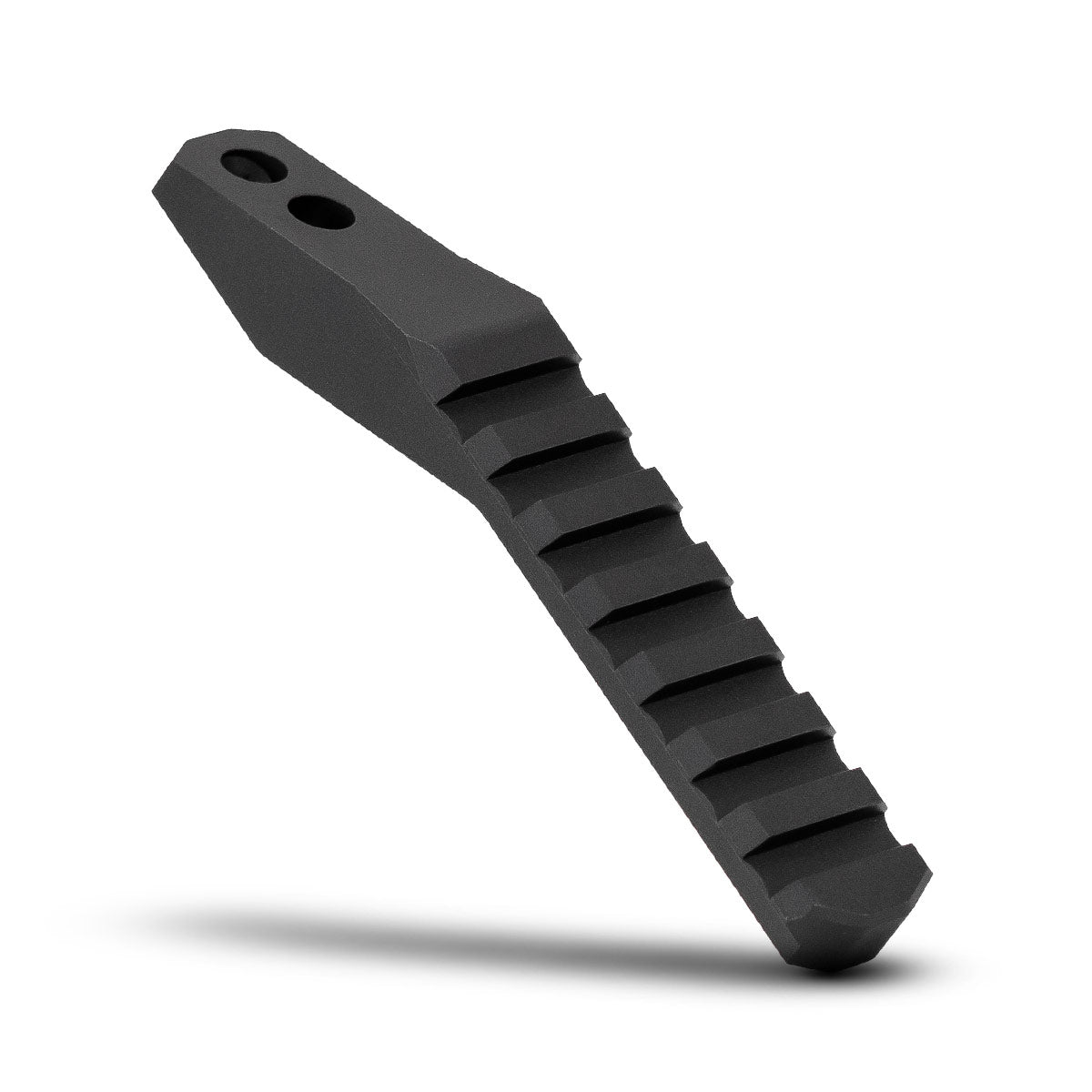

5" Picatinny Rail

• 4.7" overall length with 2.86" of available mounting surface
• 1" tall (above top of ring cap)
• Cut to clear most common 56 mm objective diameter (and below) scopes
• Adheres to STANAG 4694 rail profile (NATO rail configuration)
• 7 cross slots
• 2x #6-48 x 1/4" mounting screws
• Integral recoil lug and offset mounting holes to prevent attached accessories from shifting under recoil
• Ideal for mounting weapons mounted laser range finders and IR illuminators
• Can also be used as a scope guard and "top hand rest" when shooting in position
